Renault KANGOO EXPRESS : dimensions

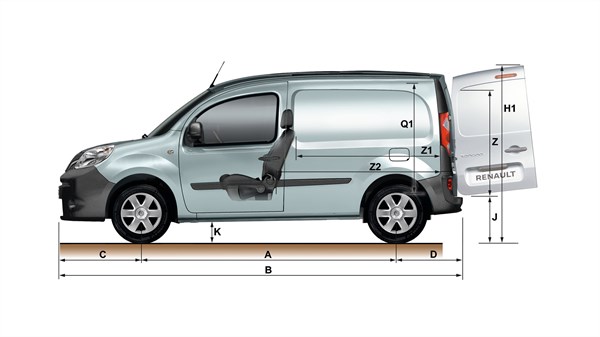

| A | Wheelbase | 2697 |
| B | Overall length | 4282 |
| C | Front overhang | 875 |
| D | Rear overhang | 710 |
| H1 | Height above swing doors | 1872 / 1934 |
| J | Boot sill height (unladen) | 558 / 609 |
| K | Ground clearance unladen / laden | 157-210 / 143-172 |

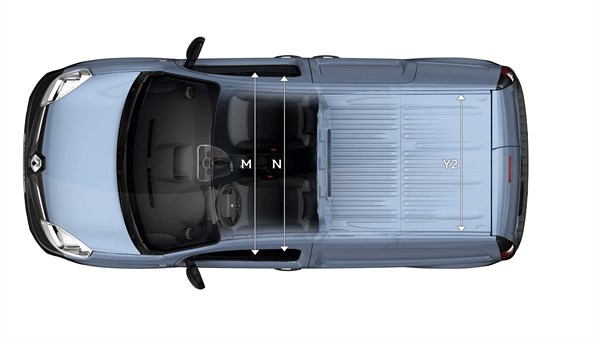

| M | Front elbow width | 1510 |
| N | Shoulder width (front) | 1464 |
| Q1 | Rear interior height | 1251 |
| Y2 | Interior width between wheel arches maximum / minimum wooden trim | 1218 / 1045 / 1185 |
| Z | Loading height | 1129 |
| Z1 | Usable loading length | 1476 |
| Z2 | Loading length on floor | 1731 |

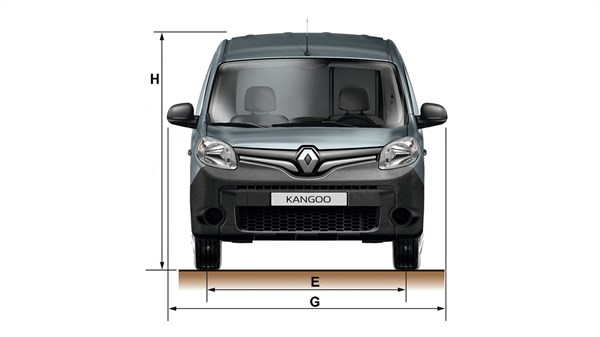

| E | Front track | 1521 |
| F | Rear track | 1534 |
| G | Overall width without / with wing mirrors | 1829 / 2138 |
| H | Unladen height | 1805 / 1844 |

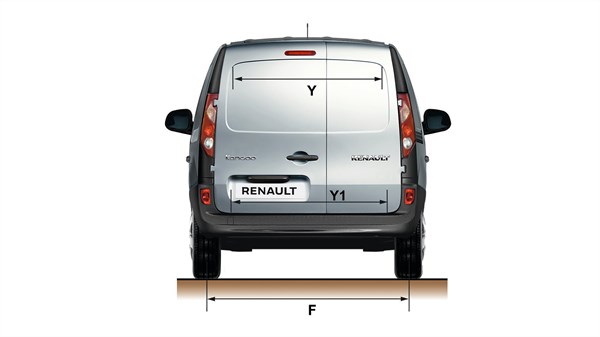

| Y | Rear width 1 m from sill | 1141 |
| Y1 | Rear width 100 mm from sill | 1219 |
| Maximum / minimum loading volume | 3000 / 3500 |
